High Power Robotic Servo Spindle STC0440-BT40 by PushCorp

STC0440-BT40

High-Power Robotic Drilling, Machining, and Gate Removal

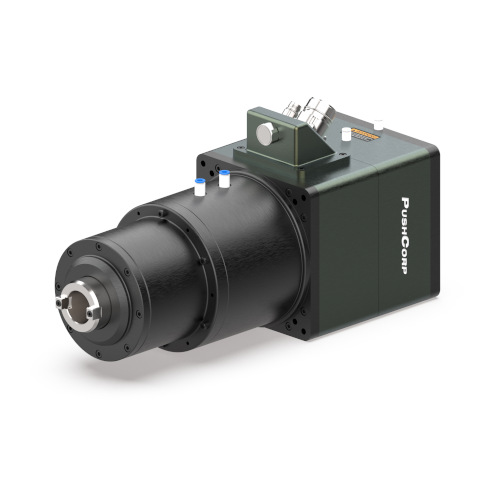

The PushCorp STC0440-BT40 is a high-power robotic spindle designed for demanding applications such as:

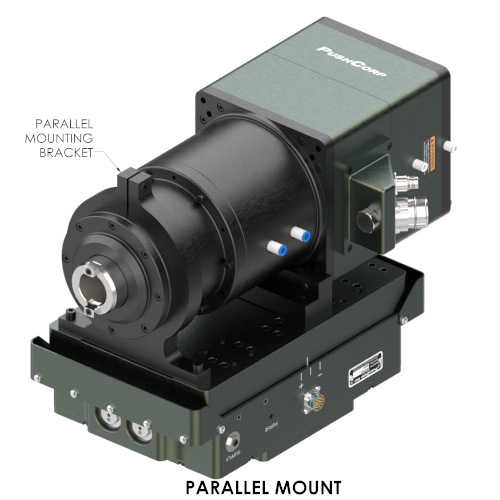

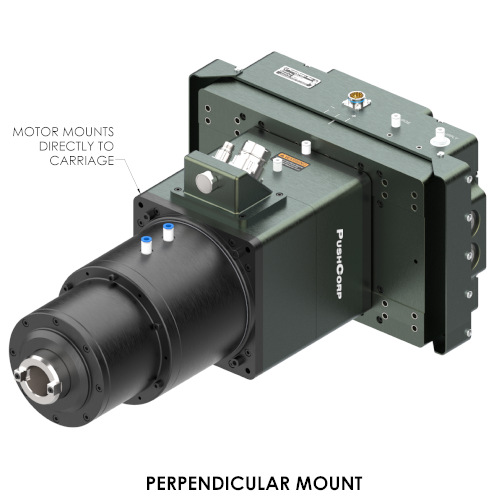

The STC0440-BT40 features a powerful 40.0 hp [30 kW] servo motor delivers consistent, controllable performance across a wide range of automated processes. The spindle can be mounted in either a parallel or perpendicular orientation on the AFD1240 and AFD92 force compliance devices. This combination enables consistent contact force and repeatable surface finishes, simplifying robot programming and improving process quality.

Request a Quote

The STC0440-BT40 features quad bearings in the front and duplex bearings, in the rear making it ideal for rigid applications. When mounted rigidly, this configuration is ideal for automated machining, deflashing, gate removal, and other applications where rigid tool positioning is required.

The spindle accepts standard BT40 tapered toolholders allowing customers to use readily available CNC tooling or custom PushCorp toolholders.This provides flexibility for applications using abrasive disks, grinding wheels, drill bits, end mills, and other cutting tools.

The STC0440-BT40 servo spindle comes standard with quick-change functionality. Supplying 90 psi releases the toolholder, while removing air pressure securely clamps the toolholder in place. This allows automated tool changes and quick replacement of abrasive or cutting tools.

The Kollmorgen AKD amplifier powers the servo spindle, as well as provides analog speed control and digital I/O. This can be ordered on its own or integrated into a UL certified control panel.

Automation Features

40 horsepower [30 kW] servo motor

Liquid Cooling Required

4000 maximum RPM

Fully adjustable and reversible speed

50.9 lb.-ft. [69 N·m] minimum Collet holding torque

± 5% speed regulation

Quad bearing setup for high radial and axial loads

PushCorp proprietary high-speed shaft seal

Mounts directly to PushCorp Active and Passive compliant tools

Fail-safe pneumatic Toolholder release

All fittings, fasteners, and threaded holes are METRIC

Uses standard BT40 Toolholders

Specifications

Model	STC0440-BT40
Power	40.0 hp [30 kW]
Continuous Stall Torque	50.9 lb.-ft. [69 N·m]
Speed Range	0-4,000 RPM
Speed Regulation	±5% (Reversible)
Tool Weight	146 lb. [66.2 kg]
Cooling	Liquid
Required Toolholder	BT40
Retention Knob	Parlec 4020TRK or equiv.
Clamping Supply Air	Dry, Non-lubricated 90 psi [6.2 bar] Minimum 100 psi [6.9 bar] Maximum
