BT30 & BT40 Toolholders

BT30 & BT40 Toolholders

  • BT30 & BT40 Toolholders
  • BT30 gripper asm-2
  • BT40 gripper asm-2

Toolholders

PushCorp's spindles and force compliance devices enable manual, material-removal processes to be automated with ease. Depending on the spindle, the shafts are configured to accept standard BT30 or BT40 tapered toolholders. Customers can choose to use standard, off-the-shelf CNC tooling as well as our custom toolholders.

Both our BT30 and BT40 custom toolholders can be ordered with a 5/8-11 thread, which is common among pneumatic and electric hand tools. Consequently, there are a wide range of abrasive manufacturers that feature this thread and can be mounted directly to our toolholders.

Additionally, we manufacture them out of a single piece of stainless steel. Unlike off-the-shelf CNC tooling, our toolholders have the retention knob built in, making it a more complete solution than any other BT available on the market.

Technical Specification Packages
ASM02987 - 1-1/4 IN X 2.362 IN MANDREL BT30 KIT ASM02987 - 5/8-18 X 1-1/4 IN X 2.362 IN MANDREL BT30 KIT DOWNLOAD TECHNICAL FILES
ASM03038-1 - 1-1/4 IN X 4 IN MANDREL BT30 KIT ASM03038-1 - 5/8-18 X 1-1/4 IN X 4 IN MANDREL BT30 KIT DOWNLOAD TECHNICAL FILES
ASM02901-1 - 1-1/4 IN X 8.142 IN MANDREL BT30 ASM02901-1 - 5/8-18 X 1-1/4 IN X 8.142 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
PAR04664-1 - 1IN X 5-1/2 IN MANDREL BT30 PAR04664-1 - 5/8-11 X 1/2IN X 5-1/2 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders PAR05300-1 - 5/8-11 X 1IN X 5-1/2 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
PAR04391-1 - 1IN X 3-1/2IN MANDREL BT30 PAR04391-1 - 5/8-11 X 1IN X 3-1/2IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders PAR05375-1 - 1IN X 5IN MANDREL BT30 W/KEY DOWNLOAD TECHNICAL FILES
ASM02930-1 - 1IN X 4 IN MANDREL BT30 ASM02930-1 - 5/8-11 X 1IN X 4 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
ASM03348-1 - 1IN X 4-1/2IN MANDREL BT40 ASM03348-1 - 1-8 UNC X 1IN X 4-1/2IN MANDREL BT40 DOWNLOAD TECHNICAL FILES
ASM03341-1 - 1-1/4 IN X 1-1/4 IN MANDREL BT30 ASM03341-1 - 1-1/4-12 X 1-1/4 IN X 1-1/4 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES

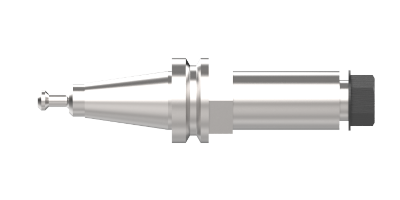

BT30 & BT40 Toolholders - asm03570 ASM03570-1 - 1-1/4 IN X 2.362 IN MANDREL BT30 KIT DOWNLOAD TECHNICAL FILES
ASM02878-1 - 1-1/4 IN X 3-1/2 IN MANDREL BT30 ASM02878-1 - 1-1/4-12 X 1-1/4 IN X 3-1/2 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03601 - 1-1/4 IN X 3-1/2 IN MANDREL BT30 W/KEY DOWNLOAD TECHNICAL FILES
ASM02856-1 - 1-1/4 IN X 4 IN MANDREL BT30 ASM02856-1 - 1-1/4-12 X 1-1/4 IN X 4 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
ASM02959-1 - 1-1/4 IN X 4.5 IN MANDREL BT30 ASM02959-1 - 1-1/4-12 X 1-1/4 IN X 4.5 IN MANDREL BT30 DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03591-1 - 1-1/4 IN X 4.5 IN MANDREL BT30 W/KEY DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03419-1 - 1-1/4-12 X 1-1/4 IN X 4-1/2 IN MANDREL BT30 NO KNOB DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03418-1 - 1-1/4-12 X 1-1/4 IN X 6 IN MANDREL BT30 W/KEY DOWNLOAD TECHNICAL FILES
ASM03805-1.151 ASM03805-1 - 1IN X 4-1/2IN MANDREL BT40 KIT DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03549-1 - 1IN X 5-7/8IN MANDREL BT40 KIT DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03488-1 - 1-1/4-12 X 1-1/4 IN X 6 IN MANDREL BT40 DOWNLOAD TECHNICAL FILES
PAR04423-1 - .43 IN X .48 IN BT30 TOOLHOLDER PAR04423-1 - M10 X 1.5 X .43 IN X .48 IN BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
ASM02824 - 1 IN X 3-1/2 IN MANDREL BT30 - 6IN BRUSH ASM02824 - 1 IN X 3-1/2 IN MANDREL BT30 - 6IN BRUSH DOWNLOAD TECHNICAL FILES
ASM02899-1 - 1 IN X 3-1/2 IN MANDREL 1/2 SHANK ASM02899-1 - 1 IN X 3-1/2 IN MANDREL 1/2 SHANK DOWNLOAD TECHNICAL FILES
ASM03035-1 - 1IN X 4-1/2IN MANDREL BT30 - 6IN BRUSH ASM03035-1 - 1IN X 4-1/2IN MANDREL BT30 - 6IN BRUSH DOWNLOAD TECHNICAL FILES
ASM03127-1 - 1 IN X 4-1/2IN MANDREL BT30 - 6IN BRUSH RECESSED SM ASM03127-1 - 1 IN X 4-1/2IN MANDREL BT30 - 6IN BRUSH RECESSED SM DOWNLOAD TECHNICAL FILES
ASM03121-1 - 1 IN X 4-1/2IN MANDREL BT30 - 6IN BRUSH RECESSED ASM03121-1 - 1 IN X 4-1/2IN MANDREL BT30 - 6IN BRUSH RECESSED DOWNLOAD TECHNICAL FILES
ASM03128-1 - 1 IN X 4-1/2IN MANDREL BT30 - 8IN BRUSH RECESSED SM ASM03128-1 - 1 IN X 4-1/2IN MANDREL BT30 - 8IN BRUSH RECESSED SM DOWNLOAD TECHNICAL FILES
ASM03044-1 - 1 IN X 4-1/2IN MANDREL BT30 - 8IN BRUSH RECESSED ASM03044-1 - 1 IN X 4-1/2IN MANDREL BT30 - 8IN BRUSH RECESSED DOWNLOAD TECHNICAL FILES
PAR04343-1 - 5/8-11 X .48 IN BT30 TOOLHOLDER PAR04343-1 - 5/8-11 X .48 IN BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
PAR04289-1 - 5/8-11 X .48 IN BT30 TOOLHOLDER W/ KEY PAR04289-1 - 5/8-11 X .48 IN BT30 TOOLHOLDER W/ KEY DOWNLOAD TECHNICAL FILES
PAR04295-1 - 5/8-11 X .57 IN BT30 TOOLHOLDER PAR04295-1 - 5/8-11 X .57 IN BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
PAR04263-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER PAR04263-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
PAR04256-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER W/ KEY PAR04256-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER W/ KEY DOWNLOAD TECHNICAL FILES
ASM02752-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER W/ WASHER AND NUT ASM02752-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER W/ WASHER AND NUT DOWNLOAD TECHNICAL FILES
ASM02751-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER W/ KEY WASHER AND NUT ASM02751-1 - 5/8-11 X .68 IN BT30 TOOLHOLDER W/ KEY WASHER AND NUT DOWNLOAD TECHNICAL FILES
PAR04603-1 - 5/8-11 X .88 IN BT30 TOOLHOLDER PAR04603-1 - 5/8-11 X .88 IN BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders PAR05150-1 - 5/8-11 X .88 IN BT30 TOOLHOLDER W/ KEY DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders PAR05302-1 - 5/8-11 X 1.00 IN BT30 TOOLHOLDER W/ KEY DOWNLOAD TECHNICAL FILES
PAR05096-1 - M10 X 1.25 X 16.7 MM BT30 TOOLHOLDER PAR05096-1 - M10 X 1.25 X 16.7 MM BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
PAR04621-1 - M14X2 X .48 IN BT30 TOOLHOLDER PAR04621-1 - M14 X 2 X .48 IN BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
PAR04591-1 - M14 X 2 X 70 MM BT30 TOOLHOLDER PAR04591-1 - M14 X 2 X 70 MM BT30 TOOLHOLDER DOWNLOAD TECHNICAL FILES
ASM03003-1 - BT30 3/4 END MILL TOOLHOLDER ASM03003-1 - BT30 3/4 END MILL TOOLHOLDER DOWNLOAD TECHNICAL FILES
ASM03004-1 - BT30 1/4 END MILL TOOLHOLDER ASM03004-1 - BT30 1/4 END MILL TOOLHOLDER DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03319-1 - BT30 1/4 X 3.25 IN END MILL TOOLHOLDER NO KNOB DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders PAR04497-1 - 5/8-11 X .48 IN BT40 TOOLHOLDER DOWNLOAD TECHNICAL FILES
PAR05612-1.150 PAR05612-1 - 5/8-11 X 1.00 IN BT40 TOOLHOLDER DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders ASM03610-1 - BT40 1IN X 2 IN ARBOR TOOLHOLDER DOWNLOAD TECHNICAL FILES
BT30 & BT40 Toolholders PAR05434-2 PAR05434-2 5/8-11 TOOL 1/2 SHANK DOWNLOAD TECHNICAL FILES
PAR4198 - BT30 TOOLHOLDER GRIPPER PAR4198 - BT30 TOOLHOLDER GRIPPER DOWNLOAD TECHNICAL FILES
PAR04572 - BT40 TOOLHOLDER GRIPPER PAR04572 - BT40 TOOLHOLDER GRIPPER DOWNLOAD TECHNICAL FILES
PAR05077 - BT30 TOOLHOLDER GRIPPER PLASTIC PAR05077 - BT30 TOOLHOLDER GRIPPER PLASTIC DOWNLOAD TECHNICAL FILES
PAR05078 - BT40 TOOLHOLDER GRIPPER PLASTIC PAR05078 - BT40 TOOLHOLDER GRIPPER PLASTIC DOWNLOAD TECHNICAL FILES
ASM03397 - BT30 TOOLHOLDER GRIPPER PLASTIC W/KEY (STC1015 & STC1515) ASM03397 - BT30 TOOLHOLDER GRIPPER PLASTIC W/KEY (STC1015 & STC1515) DOWNLOAD TECHNICAL FILES
