RI-90 Automation Rotary Interface

RI-90

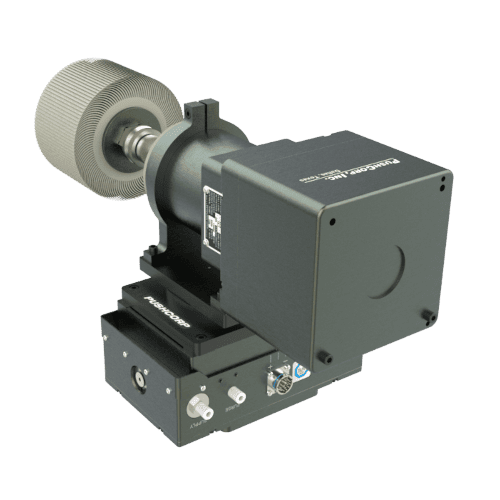

  • RI90 mid swivel
  • RI-90 enables a robot, along with a PushCorp compliant device and servo spindle to apply BOTH radial and axial forces in a single, easy setup

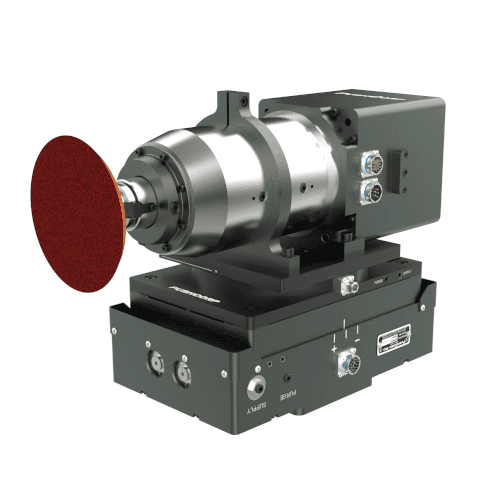

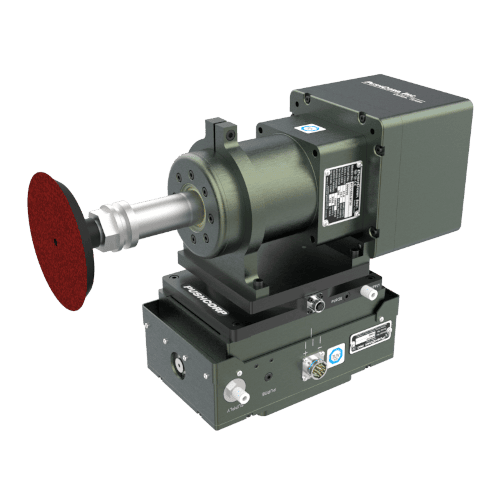

  • RI90 EOAT shown in parallel configuration for Robotic Automation Applications
  • RI90 indicator lights

RI-90 Series

Rotary Interface

The RI-90 Rotary Interface is PushCorp’s latest, ALL NEW product. The RI-90 enables a robot, along with a PushCorp compliant device and servo spindle, to apply BOTH radial and axial forces in a single, easy setup. When mounted to any PushCorp Compliance Device, a robot utilizes the RI-90 Rotary Interface to change the orientation of a Servo Spindle relative to the applied force at any time during processing. Its clever design uses a simple and quick robot motion to rotate the spindle 90 degrees. This eliminates the need for costly and complex hardware to change out the end-of-arm tooling (EOAT) or for a separate, robotic system entirely.

Instead, this compact, lightweight, and robust product simplifies the system completely. Externally mounted LEDs allow the user to visually verify the unit’s locked status from a distance. Industrial standard digital outputs provide this locking, as well as the positional status to the robot or PLC controller, to ensure fail-safe operation. The RI-90’s unique design brings an unprecedented level of flexibility, and its purpose-built design ensures maximum uptime for your material-removal process.

Features

  • Radial and Axial Force in a Single Setup
  • Lightweight, Compact Design
  • Integrated Visual Status LEDs
  • Digital Outputs for Status Conditions
  • Fail-safe Pneumatically Actuated Locking Mechanishm
  • Direct Mount to PushCorp Active and Passive Compliant Tools
  • All Fittings, Fasteners, and Threaded Holes METRIC

SPECIFICATIONS

Model RI-90 - Patent Pending
Range of Motion 90 Degrees
Power 24V +/- 10% 1 Amp Max
Tool Weight 4.4 lbs (2 kg)
Technical Specification Packages
ri90-axial.69 RI-90-Axial Download Technical Files

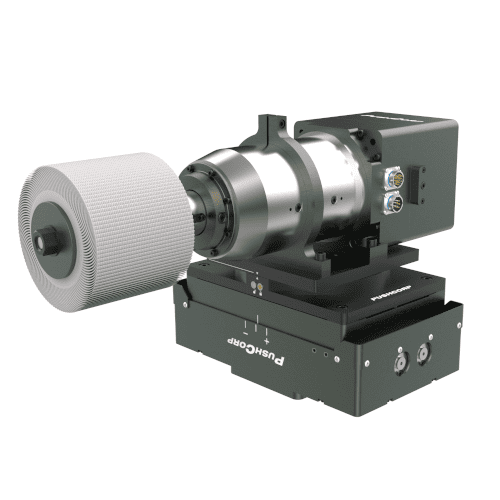

ri90-radial.68 RI-90-Radial Download Technical Files

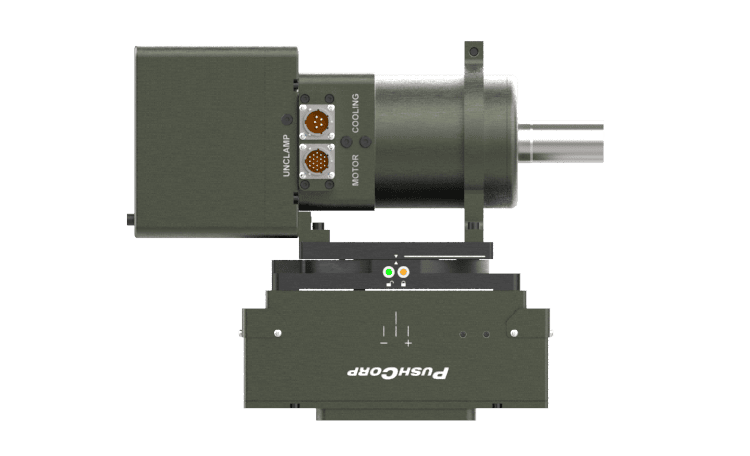

afd310-2-ri90-stc1503-0605-bt30-axial.71 AFD310-2-STC1503/0605-BT30-AXIAL Download Technical Files

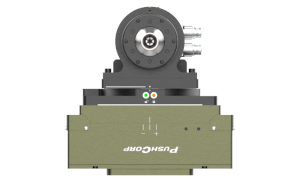

afd310-2-ri90-stc1503-0605-bt30-radial.70 AFD310-2-STC1503/0605-BT30-RADIAL Download Technical Files

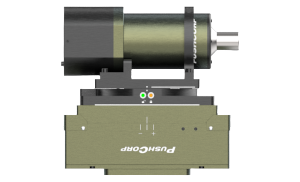

afd310-2-ri90-stc1503-0605-bt30-axial.71 AFD72-2-STC1503/0605-BT30-AXIAL Download Technical Files
afd310-2-ri90-stc1503-0605-bt30-radial.70 AFD72-2-STC1503/0605-BT30-RADIAL Download Technical Files

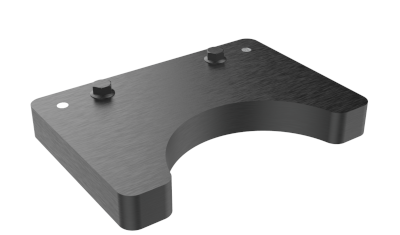

RI-90 pivot fork RI-90-PIVOT FORK-1503/1605 Download Technical Files

What Are You Waiting For? Get in Touch With Our Application Engineers Today!

With 1000’s of systems sold, we have the equipment needed to make your project a success. Our application engineers are ready to learn about your process and help recommend the right products for your robotic surface finishing system.
