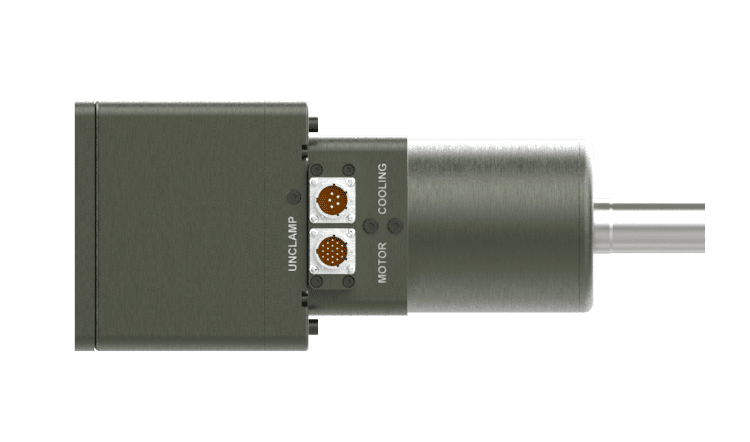

  • Perpendicular mount for STC1503-BT30 automated tooling by PushCorp

STC0605-BT30

High Torque Robotic Servo Spindle

The PushCorp STC0605-BT30 high torque servo spindle is an ideal solution for robotic material removal applications such as:

The STC0605-BT30 features a powerful 5.0 hp [3.8 kW] servo motor that provides constant speed. This equipment is designed to mount parallel or perpendicular on the AFD310 and AFD72 force compliance devices. As a result, it has never been easier to program beautiful and consistent surface finishes.

The STC0605-BT30 may also be mounted directly to the robot with no force compliance device. This opens the door for rigid applications such as routing and deflashing.

The motor shaft is configured to accept standard BT30 tapered toolholders. Customers can choose to use standard off the shelf CNC tooling as well as custom PushCorp toolholders. Together, these components allow for a wide range of abrasive disks, wheels, drill bits, and cutting tools. The STC0605-BT30 servo spindle comes standard with quick-change functionality. Simply supply 90 PSI to drop off a toolholder, then release the air pressure to pick up a new one with a fresh abrasive.

The Kollmorgen S724 amplifier powers the servo spindle, provides analog speed control, and digital I/O. This can be ordered on it’s own or integrated into a UL certified control panel.

Automation Features

  • 5.0 horsepower [3.8 kW] servo motor (Liquid Cooling Required)
  • 6,000 maximum RPM
  • Uses standard BT30 Toolholders
  • Sealed bearings for long service life
  • PushCorp proprietary high-speed shaft seal
  • Available with resolver for accurate speed control
  • Fail-safe pneumatic Toolholder release
  • All fittings, fasteners, and threaded holes are METRIC

SPECIFICATIONS

ModelSTC0605-BT30
Power5.0 hp [3.8 kW]
Continuous Stall Torque5.6 lb.-ft. [7.6 N·m]
Speed Range60-6,000 RPM
Speed Regulation±5% (Reversible)
Tool Weight30 lb. [13.6 kg] Dry
CoolingLiquid
Required ToolholderBT30
Retention KnobParlec 3003TRK or equiv.
Clamping Supply AirDry, Non-lubricated 90 psi [6.2 bar] Minimum 100 psi [6.9 bar] Maximum
Technical Specification Packages
STC1503-BT30 / STC0605-BT30 by PushCorpSTC1503-BT30 / STC0605-BT30 Download Technical Files
AFD72-2 Parallel by PushCorpAFD72-2 Parallel Download Technical Files
AFD72-2 Parallel 5/8-11 Tool Holder by PushCorpAFD72-2 Parallel 5/8-11 Tool Holder Download Technical Files
AFD72-2 Perpendicular by PushCorpAFD72-2 Perpendicular Download Technical Files
AFD72-3 Parallel Download Technical Files
AFD72-3 Parallel by PushCorpAFD72-3 Parallel #2 Download Technical Files
AFD82-2 Parallel by PushCorpAFD82-2 Parallel Download Technical Files
AFD82-2 Perpendicular by PushCorpAFD82-2 Perpendicular Download Technical Files
AFD82-3 Parallel by PushCorpAFD82-3 Parallel Download Technical Files
AFD310-2 Parallel by PushCorpAFD310-2 Parallel Download Technical Files
STC1503-BT30 AFD310-2 PerpendicularAFD310-2 Perpendicular Download Technical Files
AFD620-1 Parallel Download Technical Files
Spindle Technology Overview
Parallel Mounting Example
Perpendicular Mounting Example
ModelPowerContinuous Stall TorqueSpeed RangeSpeed RegulationTool WeightCoolingRequired ToolholderRetention KnobClamping Supply Air
STC1503-BT303.0 hp [2.2 kW]2.57 lb.-ft. [3.5 Nm]60-15,000 RPM±5% (Reversible)28 lb. [12.7 kg]LiquidBT30Parlec 3003TRK or equiv.Dry, Non-lubricated 90 psi [6.2 bar] Minimum 100 psi [6.9 bar] Maximum
STC0605-BT305.0 hp [3.8 kW]5.6 lb.-ft. [7.6 N·m]60-6,000 RPM±5% (Reversible)30 lb. [13.6 kg] DryLiquidBT30Parlec 3003TRK or equiv.Dry, Non-lubricated 90 psi [6.2 bar] Minimum 100 psi [6.9 bar] Maximum
STC0612-BT4012.0 hp [9 kW]10.7 lb.-ft. [14.5 N·m]60-6,000 RPM±5% (Reversible)82 lb. [37.2 kg]LiquidBT40Parlec 4020TRK or equiv.Dry, Non-lubricated 90 psi [6.2 bar] Minimum 100 psi [6.9 bar] Maximum
STC101515.0 hp [11.2 kW]14.8 lb.-ft. [20 N·m]0-10,000 RPM±2% (Reversible)74 lb. [33.6 kg] DryLiquidBT30Parlec 3003TRK or equiv.Dry, Non-lubricated 90 psi [6.2 bar] Minimum 100 psi [6.9 bar] Maximum
STC151515.0 hp [11.2 kW]7.4 lb.-ft. [10 N·m]0-15,000 RPM±5% (Reversible)65 lb. [29.5 kg] DryLiquidBT30Parlec 3003TRK or equiv.Dry, Non-lubricated 90 psi [6.2 bar] Minimum 100 psi [6.9 bar] Maximum
